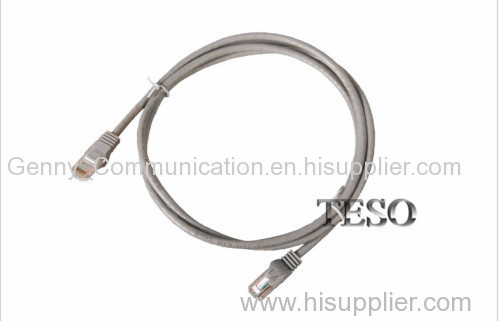

High Performance Ethernet Patch Cord IEEE 802.3u 24AWG , Cat6

Quick Detail:

1. 4 pairs 24awg Cat6 Patch Cable /Patch Cord, unshielded

2. Conductor: 7/0.2mm Bare copper , soft annealed bare copper.

3.Insulation: America Dow's HDPE

4.Contact: FU/1U/3U/6U/15U/30U/50U gold plated

5.Outer jacket: PVC or FRPVC

6.Any color and any length is optional .

7. Test :Pass fluke test and with 25 years quality warranty.

Application

*Fast Ethernet (IEEE 802.3u)

*100vg-AnyLan(IEEE 802-12)

*Token Ring(IEEE 802.5)

*TP-PMD(ANSI X 3T9.5)

*100Base-T Ethernet(IEEE 802.3u)

*155/622 Mbps 1.2/2.4 Gbps ATM

*1000Base-T Ethernet

*550 MHz Broadband video

Industry Standard

*ANSI/TIA 568-C.2

*ISO/IEC 11801

*EN 50173

Specifications

Fire resistant :CM ,LSZH ,CMR

Description

Cable

Conductor: 7 copper wires Ø0.20 mm (0.008"), 24 AWG

Insulation: High Density Polyethylene (HDPE)

Diameter of insulated conductor: 0.98 ± 0.05 mm (0.039" ± 0.002")

Number of pairs: 4

Color of twisted pairs: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown

Plugs

*2 pieces RJ-45 8P8C

*Contact: FU/1U/3U/6U/15U/30U/50U gold plated

*Latch guard Material: PVC or FR-PVC
